Tuesday, 19 November 2013

Webinar featuring the Nano Membrane Toilet 26th Nov

The Nano Menbrane toilet will be on the the technologies featuring in the next expert webinar hosted by SEI on Tuesday 26 Nov at 16:30 CET, alongside:

  • New concepts for on-site sanitation based on bio-additives and pit design (London School of Hygiene and Tropical Medicine), Jeroen Ensink
  • Sol-Char Toilet: Using Concentrated Solar Energy to Stabilize Fecal Waste and Produce a Valuable Soil Amendment (University of Colorado, Boulder, USA), Richard (Chip) Fisher and Ryan Mahoney
The webinar will consist of presentatiosn and questions.  To attend please contact  elisabeth.muench@ostella.de

Monday, 18 November 2013

Works-like prototype treats simulated faeces

So, as promised, our works-like prototype is now in our lab being tested with simulated faeces.
You can see the simulated faeces settling out and the dewatering screw moving the sludge towards the mister (far right):
The membranes are in place to remove the water:
And the two columns of beads condesne the waster vapour.  At present we're using silica and glass beads but we're about to apply a nano coating to the beads to make the condensation more efficient:


 And the water is collected in a tank at the bottom (you can see the ripples in this image - it's so clear it's hard to see!)
The sludge drops into the final container where the nanomist forms.   We'll soon add polymer to the mist which will contain the odour and pathogens:
Obviously there's still a lot of optimisation to go but we're really happy to be able to see all these processes working together.

Thursday, 24 October 2013

Works-like prototype nearly finished

We're really excited that our works-like prototype is nearly ready for testing.   It's been built locally by Model Products who've helped us work through the integration of the components.   It will comprise the membranes, beads, nanomister and flush.  This version made out of perspex so it will be easy to observe each process, but we're also working on an aspirational design.


Keep following ther blog to see this prototype being tested in our lab very soon, and the beautiful design.

Monday, 21 October 2013

Dewatering in action

Here's the membrane rig working at full power, pulling water out of a synthetic urine solution. In this case it's coming through fast as both liquid and vapour, and then going through a cold trap where we can capture it all and make measurements.
video

Thursday, 17 October 2013

Three generations of mister

We've now developed the latest mister unit and lining the three up together shows just how far we've come!


The lastest desgin (the far left) has been 3D printed, but could be injection moulded for mass production.

Monday, 30 September 2013

Turning sweat into watts

We're continuing to develop options for powering the Nano Membrane Toilet in scenarios where grid power is not available.   The latest option is a bike-generator. The generator is compound by a rear-wheel hub motor, a bike stand, and a 26" wheel mountain bike. After a short testing period, an average power of 82 Watts has been generated while pedalling for 15 min by male students. Nevertheless, a more comprehensive statistical study will be carried out to better characterize the generator and user capabilities. Currently, our efforts are focusing on improving the comfort of the rider and reducing the footprint of the bike.
video

Tuesday, 17 September 2013

How do you ‘flush’ without a ‘flush’?

The C4D Nano Membrane Toilet workshop


A flush suggests water but what we actually mean is how do you move waste from the toilet bowl to the waste holding tank. The new method for the Cranfield toilet has to meet the following criteria:

  1. No additional water can be used
  2. No additional power can be used
  3. The action has to be in keeping with the user’s normal behaviour
  4. A constant barrier must be maintained between the holding tank and bowl

To do this the design team began by scoping existing methods before moving into concept generation and development. Testing is soon to commence evaluating materials and shapes.

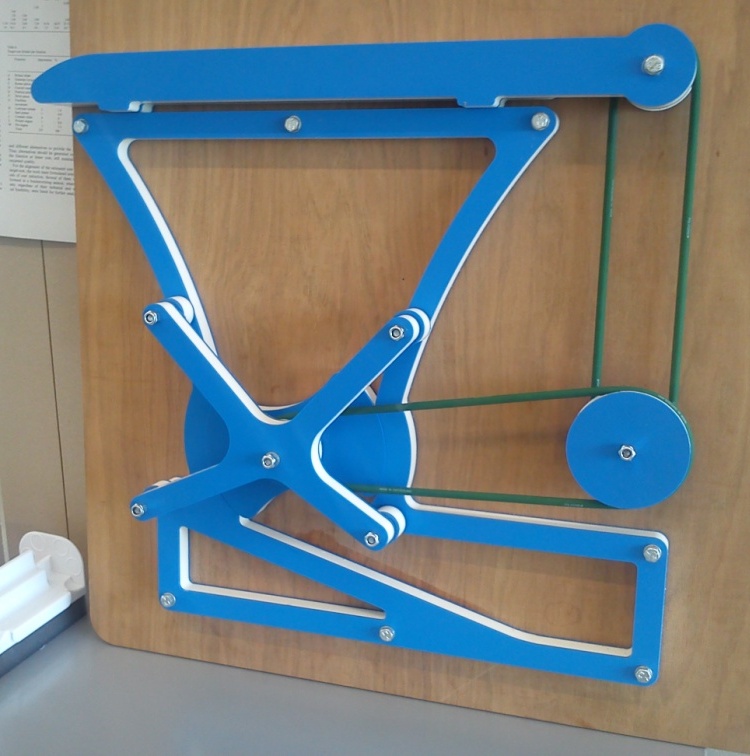

First model of the cross section integrating the flush mechanism with the toilet seat
CAD model from flush mechanism development
Gears of flush mechanism prototype
Latest cross section model from the flush mechanism development

video

A video of the the latest model of the cross section experimenting with the gears for the flush mechanism

Tuesday, 25 June 2013

New nebuliser under trial

The nebulising chamber has been redesigned (see the old one here).   The new nebuliser takes up one quarter of the space of the original and mounts directly to the side of the coating chamber.


Monday, 8 April 2013

The team go to Ghana to see the challenge for themselves

Wednesday 20th March. From Accra to Kumasi.

After recovering from the journey from the UK to Accra on Tuesday 19th of March, the Cranfield University´s team made up of Dr. Richard Franceys, Dr. Leon Williams, Ross Tierney and Eloy Pérez López, began the sensitization trip to Ghana.

Our team travelled to Accra´s coach station, and on our way we took note of certain items that are flourishing and widely sold in the Ghanaian society like mobile phones, fridges, air conditioners, internet connection, plasma television’s, etc. Moreover, we found many Ghanaian street vendors selling water, mango, tissues, clean products, toilet roll. The last one was a reminder of our trip´s aim, to sensitize about the living and sanitary conditions of Ghanaians.

Once we arrived at Accra´s chaotic coach station, we boarded a coach and waited for three hours for it to completely fill up before we could depart (a pretty common and very frustrating occurrence in many African coach stations).
 An interesting four hour journey helped us to see some different types of houses and shops on our journey. The main road to Kumasi is a two-lane tarmac highway that is still under construction. During the journey, two people lead prayers and songs for the passengers reminding us of the great role that religion plays in everyday Ghanaian life.

After our four-hour journey, we finally arrived to the Engineering Guest House at the Kwame Nkrumah University of Science and Technology (KNUST) where we met Napoleon, a Ghanaian student of Richard who would act as our guide whilst we were there.

Thursday 21st of March

On Thursday, we met the managers and workers of the Clean Team, a Unilever sanitation project based in Kumasi that includes a former Cranfield student, by the name of Faustina.

Clean Team is a sanitation entrepreneurship that is currently providing toilets to the dwellers of Kumasi's peri-urban areas of Ash Town, Alabar and Abondo. These populations do not have sewage network. The toilets are designed to store the faeces and urine until they are collected by Clean Team's employees in the highest hygienic conditions. When we visited the Clean Team were serving approximately 150 households, and have an ambition to scale to 1,000 households by the end of 2013.

The toilet design allows the collection of the urine in a separate container to be emptied by the user, while the faeces is kept in a container that holds seven litres of a mixture of water and a biodigesting chemical that also acts as an odour control. The buckets are collected twice, three times or every day depending on the number of users and the monthly bill that they are paying. Once the Clean Team employees collect the waste from the customers, they are transported by trolley and motor-vehicle, to the company’s storage containers. Once these vessels are full, they are emptied by cistern lorries which discharge its wastewater load into sewage lagoons.
After meeting the managers, we went to visit the installation of one toilet for a new customer, and to meet other customers. They told us that these toilets are an improvement for their lives and specially for disabled or ill people.

After visiting the Clean Team, we went to see the public toilets of the area, the people told us that every morning they have to queue to go to the toilet. At peak-time, the queue can be up to one hundred people. There are different prices and standards between flushing toilets and latrine ones, $0.15 and $0.1 respectively. There is also a different cost for using newspaper or toilet paper for cleaning. We were told that newspaper is the more popular choice.

In the afternoon the team were greeted by the Waste Management Chairman of the Kumasi Metropolitan Assembly. He was a former student of Dr Franceys 20 years ago. After an interesting meeting discussing the sanitary solutions on a large scale he arranged for an official car to take Richard, Napoleon, Faustina and Eloy to the sewage lagoons-based treatment plant and landfill. The team also observed a research project trying to produce a new type of Biogas from human waste in partnership with a Columbian company.

At the same time, Dr Leon and Ross went to visit the Design Centre at KNUST. They had an interesting discussion about design facilities and capabilities of the university and local industry.
After a very interesting day the Cranfield Team flew back to Accra.

Friday 22nd March

In the morning, we took a taxi to meet Kweku A. Anno, Director of Biological Filters and Composters Ltd. This is a sanitation business, which provides an innovative composting toilet for its customers. Biofilcom has installed the system in over 2000 locations around Ghana, including Anglogold Ashanti’s Tarkwa facilities and the HFC Bank with most installations usually requiring little or no excavation.

Kweku explained to us the advantages of their Biofil Toilet System. The system is able to break down solid organic waste up to thirty times faster and more efficiently than the traditional septic system. This also means that the system can be up to thirty times smaller than the septic system. The waste is typically broken down within two weeks, and there is very little odour generated in the system. Also, the only by-product, which is the filtered waste water, that can be re-used. This type of toilet can utilize the nutrients of wastewater to feed banana plantain, or other tropical plants in your garden.
After comprehensive discussion about their systems and our proposed system, we left to visit two more local areas; Nima and Agbogbloshie, where the lowest-income dwellers in Greater Accra reside.
In Nima we visited one of the public toilet areas, and the market road. We took note of the availability and cost of products in a hardware shops in Nima’s market.


After Nima, we went to visit the slum of Agbogbloshie. We observed that the two types of economic activity that support the life of its dwellers, trade and dismantling of electronic waste in unsafe and unhealthy conditions for recycling.

Saturday 23rd and Sunday 24th

These were full days of sketching and working through ideas between Leon, Ross and Eloy to try to design a suitable system and layout for the components before leaving Accra on the evening of the 24th. All members of the team were in agreement that our main purposed of sensitization trip has been fulfilled. It was overall an unforgettable and incredibly useful experience for gaining a better understanding of the living conditions, aspirations and needs of low-income and middle-income communities who are potential users of the Nano Membrane toilet.

Authors : Eloy Perez Lopez and Ross Tierney

Tuesday, 26 March 2013

Human powered generator under test

 The generator we showed you here is now installed into the test rig and being trialled to see how much power it can generate and how easy it is to use:

Carl Hensman from the Bill and Melinda Gates Foundation was one of the first to put it to test:


Wednesday, 13 March 2013

The membrane rig

Just been down to the pilot hall and seen the membrane rig for the first time:

It's been carefully designed so we can monitor every stage in the process.   It is helping us to design the membrane component which will be a lot more compact!

Thursday, 7 March 2013

Human powered generator ready for testing



Our team of engineers have built this generator that will be used to power the toilet:



Power is needed for the vacuum pump and nano mister, and any extra power generated can be used to charge mobile phones.   The generator will be powered by a hand crank.   Ongoing testing will verify the power output and the overall usability.

Wednesday, 6 February 2013

The nano mister in action

Initial experiments on the EHDA spray mechanism that will coat the sludge briquettes revealed that the viscosity of the melted polycaprolactone was too high to be sprayed.   Instead nanoparticles of polycaprolactone will be suspended in water and sprayed onto the briquettes.

An experimental rig has now been built to trial this process:
It shows the initial liquid storage vessel (back), the mister (right) and the misting chamber (left).   The misting chamber will activate and fill with nano particles.   The briquette will then drop through the hole at the top and land on the flaps at the bottom of the chamber, coating the bottom of the briquette.   It will then remain in the chamber so that top of the briquette is coated.   Finally the flaps will open and it will fall into a storage vessel below.

The rig can successfully create a mist of water:


Experiments with the nano particles will start soon.

With thanks to Richard Franceys for the photos.
